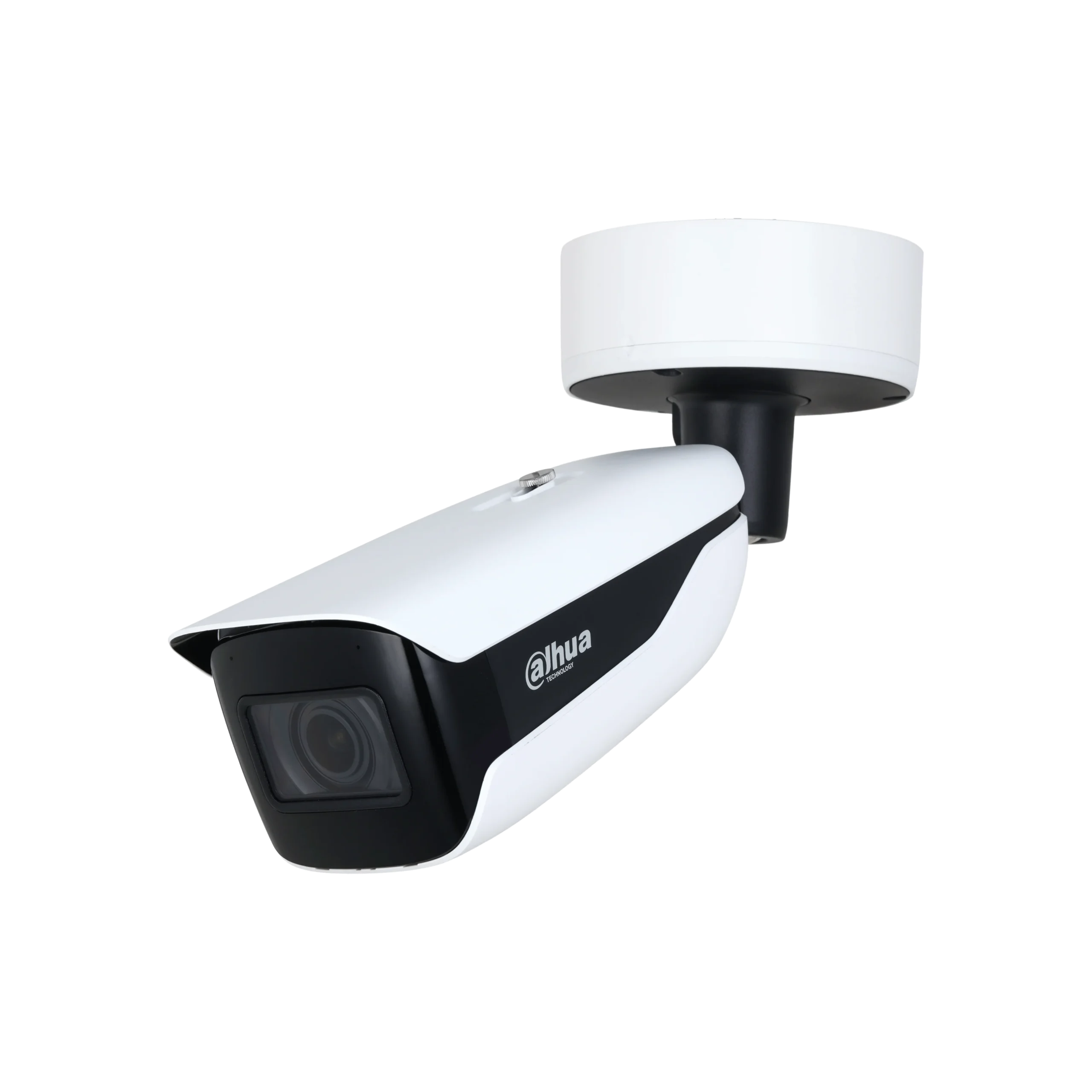

DH-IPC-HFW5442H-ZE 4MP Vari-focal Bullet WizMind Network Camera

Technical Specification
Camera
Image Sensor 1/1.8”4Megapixel progressive CMOS
Max. Resolution 2688 (H) × 1520 (V)
ROM 128 MB
RAM 1 GB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.003 Lux @F1.8
S/N Ratio ＞56 dB
Illumination Distance 60 m (196.9 ft) (IR LED)
Illuminator On/Off Control Auto/Manual
Illuminator Number 4 (IR LED)
Pan/Tilt/Rotation Range
Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens
Lens Type Motorized vari-focal
Mount Type φ14
Focal Length 2.7 mm–12 mm
Max. Aperture F1.8
Field of View
Horizontal: 107°–44°
Vertical: 69°–29°
Diagonal: 134°–53°
Iris Type Auto
Close Focus Distance W/T: 1.2 m (3.9 ft)
DORI
Distance
Lens Detect Observe Recognize Identify
W 57.0 m
(187.0 ft)
23.0 m
(75.5 ft)
11.0 m
(36.1 ft)
5.7 m
(18.7 ft)
T 130.7 m
(428.8 ft)
52.0 m
(170.6 ft)
26.0 m
(85.3 ft)
13.0 m
(42.7 ft)
Smart Event
IVS Abandoned object; missing object
Heat Map Yes
Professional, intelligent
IVS (Perimeter Protection)
Tripwire; intrusion; fast moving (the three functions
support the classification and accurate detection
of vehicle and human); loitering detection; people
gathering; parking detection
Face Detection
Face detection; track; optimization; snapshot; report high
quality picture; face enhancement; face exposure; face
attribute extract, 6 attributes and 8 expressions: Gender,
age, glasses, expressions (anger, calm, happiness,
sadness, disgust, surprise, confusion and fear), mask,
beard; face matting setting: face, single inch photo; three
snapshot methods: real-time snapshot, optimization
snapshot, quality priority; face angle filter; optimization
time setting
People Counting
Support the counting of enter number, leave number
and pass number, and displaying and outputting yearly/
monthly/weekly/daily reports
Support the counting of number in area, and 4 rules
configuration. Count number of people or stay time and
link alarm
Support queue management, and 4 rules configuration.
Count number of people or stay time and link alarm
Intelligent Search
Work together with Smart NVR to perform refine
intelligent search, event extraction and merging to event
videos
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported
by the sub stream)
Smart Codec Smart H.265+/H.264+
Video Frame Rate
Main stream: 2688 × 1520 (1 fps–25/30 fps)
1920 × 1080 (1 fps–50/60 fps)
Sub stream: D1 (1 fps–50/60 fps)
Third stream: 1080p (1 fps–25/30 fps)
Stream Capability 3 streams
Resolution
2688 × 1520; 2560 × 1440; 2304 × 1296; 1080p (1920 ×
1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704
× 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352
× 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 kbps–8192 kbps
H.265: 19 kbps–8192 kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 140 dB
White Balance Auto/natural/street lamp/outdoor/manual/regional
custom
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Electronic Image
Stabilization (EIS) Yes
Smart Illumination Yes
Defog Yes
Image Rotation 0°/90°/180°/270°
Mirror Yes
Privacy Masking 4 areas
Audio
Audio Compression PCM; G.711a; G.711Mu; G.726; AAC; G.723
Alarm
Alarm Event
No SD card; SD card full; SD card error; network
disconnection; IP conflict; illegal access; motion
detection; video tampering; defocus detection; scene
changing; intrusion; tripwire; abandoned object;
missing object; fast moving; parking detection; loitering
detection; people gathering; input abnormal detection;
intensity change detection; people counting; face
detection; voltage detection; people counting in area;
stay alarm; people No. exception detection, queue
management
